The CC4 cast saw with its powerful 110-watt motor maintains rapid and efficient cutting on the thickest of body casts.

Features:

- The knurled grip close to the cast saw blade provides the operator with excellent control and flexibility of movement.

- An optional clear extraction hood ensures good visibility when cutting. The hood is fully rotatable to suit the most convenient cutting position.

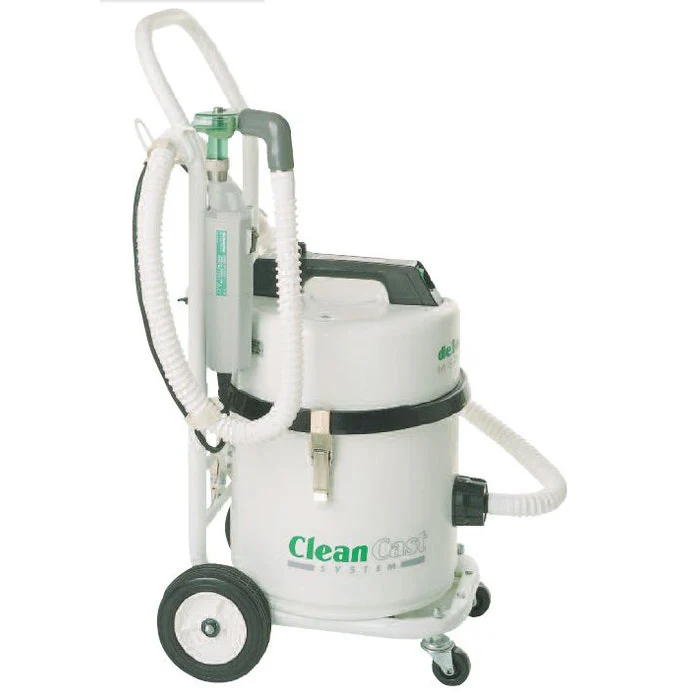

Extractor:

- The CleanCast extractor has a four-stage filtration system consisting of an easy to change synthetic collection bag, two cloth filters and a micro filter.

- The Hepa-flo microfilter retains 99.997% of all dust particles greater than 0.5 microns, providing a safe working environment for all.

• The suction rate can be switched between powerful high and quiet low setting to suit operator and patient convenience.





Handpiece

Oscillating speed: 14,000 (or 16,000) cpm

Voltage: 230 (or 120) Vac

Weight: 1,300g

Sound level: 70 dB(A)

Length: 333 mm



Extractor

Motor power (max): 1 kW

Supply voltage: 240 or 100 - 120 Vac

Supply frequency: 50 - 60 Hz

Suction: 2,500 water gauge mm

Filtration: 99.997% > 0.5 microns

Dust bag capacity: 7.5 litres

Sound level: 58 dB(A)



Old Code: CC4A-230AUS

New Code: 72030-05
